The open door film holder makes convenient to wear the film. The pre-stretching rate can reach 250 percent, saving material consumption. Maximize the value of stretched film per meter standard constant release film fixed-point winding and quantitative use of film. Parameters can be adjusted from the control panel. Bottom pallet wrapping rounds from 1-10. Top pallet wrapping rounds from 1-10. Rotation speed adjustable from 3 to 10 rpm. PLC control system with more stable operation, heavy duty design with rigid machine body. After every wrapping work, turntable goes back to home position.
Control Panel Parameter Setting
- Bottom wrapping cycle: 1-9 cycles
- Top wrapping cycle: 1-9 cycles
- Up and down cycle: 1-9 cycles
- Reinforce cycle: 1-9 cycles
- Photocell delay time: 1-99 seconds
Application Film Specification
- Film thickness: 17-23mic
- Film roll inner diameter: 76mm
- Film roll outside diameter: 250mm
- Film width: 500mm
- Film roll weight: 13.8 Kg
- PLC Control + key board control
- Inverter speed control
- Slow start and stop
- Stop at home position
- Auto detect pallet height
- Foldable tower design
- Front and rear forklift access
- Top sheet option
- Variable turntable and film carriage speed
- Middle reinforce
- Can store 5 recipes
|
Item Name:
|

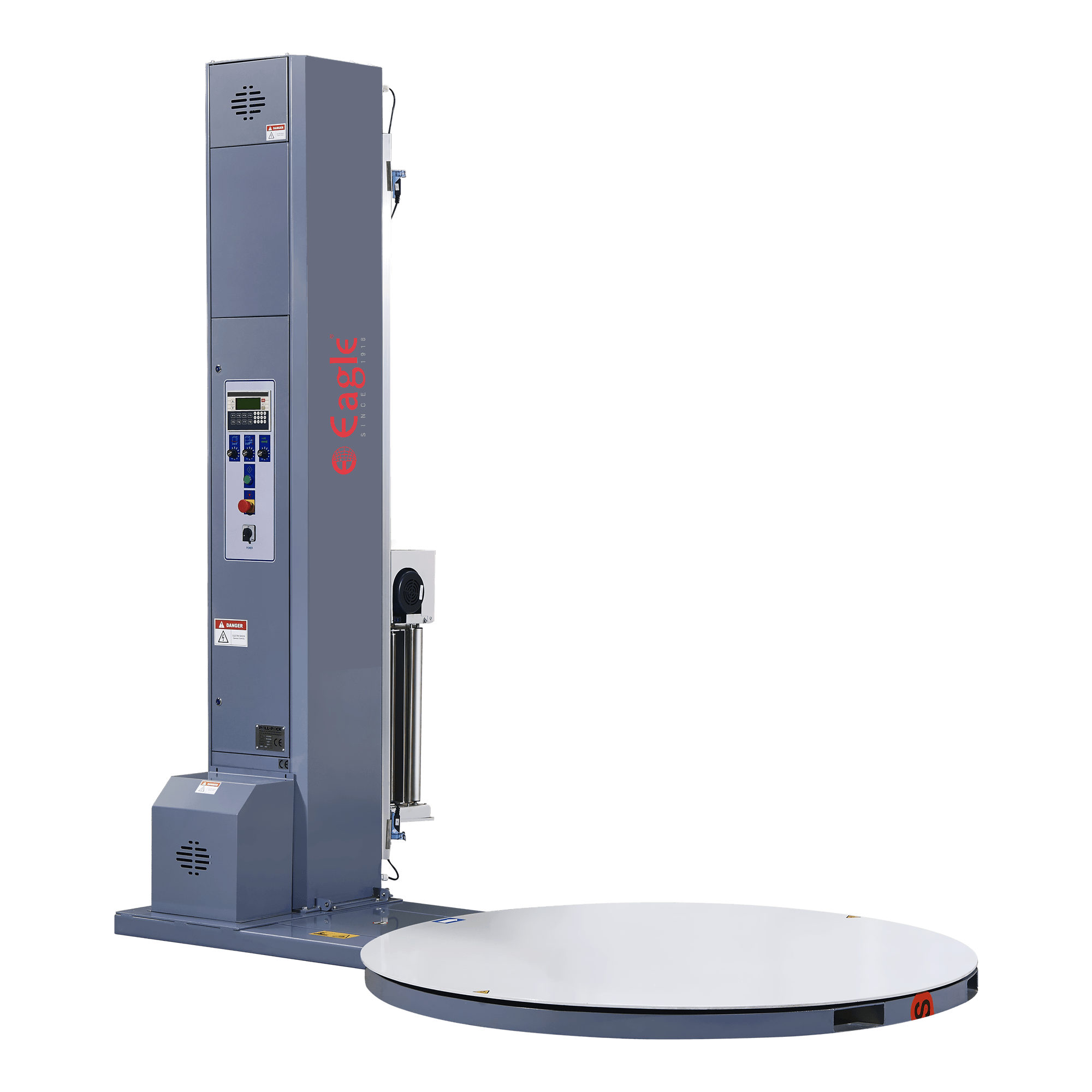

Pallet Wrapper Machine
|
|
Model:
|
XT-4505-2
|
|
Manufacturer:
|
Eagle
|
|
Voltage:
|
110-220V
|
|
Frequency:
|
50/60Hz
|
|
Weight Capacity:
|
2000 Kg
|
|
Height:
|
2100mm
|
|
Wattage:
|
1200W
|
|
Dimensions:
|
245.5L x 73B x 220H
|
|
Delivery Time:
|
2-7 Days
|
|
Unit:
|
Piece
|
